DESCRIPTION
The Baja Designs LP4 Pro, the smallest variant in the LP lineup, maintains the power and features of its siblings. With a total of 8,857 lumens and a 200-degree spread of usable LED light, the LP4 delivers 6,885 forward-projecting lumens and 1,972 lumens of dedicated peripheral lighting through Integrated Peripheral Technology (IPT). To ensure optimal performance, the LP4 incorporates our proprietary Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. This significantly enhances cooling capacity and overall performance. The LP4 Pro offers customization with red, blue, or green backlight options in addition to the original amber, allowing enthusiasts to personalize their vehicle for shows, photo shoots, or wherever they seek attention.
Baja Designs LP series lights featuring red, blue, or green backlights are intended exclusively for exhibition use. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver bears the responsibility of adhering to all highway equipment laws and safety regulations.
ELS™ Scores:
Click to learn more about our Effective Lighting Score (ELS)
LP4 Spot (Clear): ELS 134°/ 6.7/ 438'/ 7953
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | LP4 Pro LED Light Pod Pair w/ Wiring Harness |
| Secondary Amperage Rating (A) | 1.000 |
| Secondary Brightness (Lumens) | 1972 |
| Secondary Light Quantity | 4 LEDs |
| Secondary Lighting Technology | LED |
| Secondary Lighting Type | Integrated Peripheral Technology (IPT) |
| Secondary Wattage (W) | 15 |
| Terminal Connector | DT06-4S Deutsch |
| Terminal Type | Mating Connector |
| Universal or Specific | Universal |
| Wattage (W) | 75.900 |
| Wiring Harness Included | Yes |
| Amperage Rating (A) | 5.500 |
| Average Rated Life (hr.) | 49,930 |
| Backlight Amperage Rating (A) | 0.350 |
| Backlight Wattage (W) | 4.830 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coat Cast Aluminum |
| Brightness (Lumens) | 8857 |
| Description | Driving/Combo; Amber; Pair |
| Housing Color | Black |
| Housing Material | Powder Coat Cast Aluminum |
| Lens Color | Amber |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam/Day-Time Running Backlighting |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |

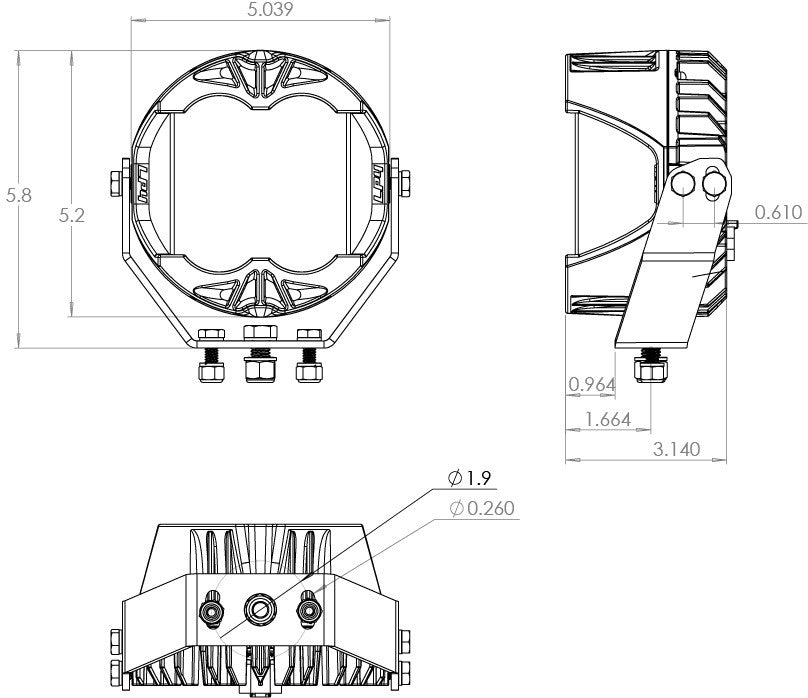

Dimensions
| Depth (in.) | 3.200 |
| Height (in.) | 5.100 |
| Length (in.) | 5.100 |
| Weight (lbs.) | 2.800 |
